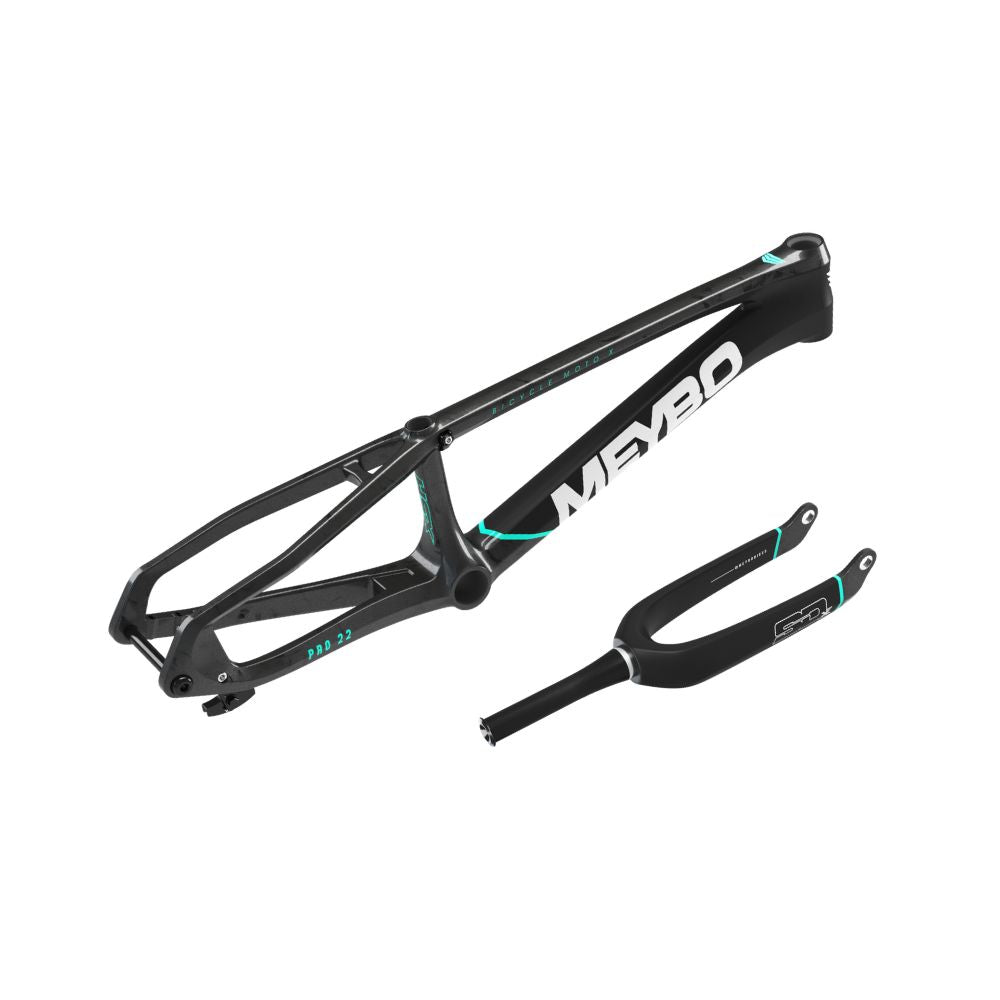

MEYBO HSX CARBON FRAME/FORK KIT
The Meybo HSX Carbon frame kit combines the Meybo HSX Carbon frame with the SD Components Carbon V2 fork. This exceptional, high performance package stands out for its refined aesthetics and innovative design.
It is the most advanced frame in the Meybo lineup, engineered for the most demanding levels of competition. Made from Toray T800 carbon fiber, the frame delivers the perfect blend of lightness, stiffness, and stability. Its World Cup–inspired geometry provides an ideal balance between agility and stability, even at high speed. This premium model features a Flat-mount brake interface designed for 120 mm discs, ensuring optimal braking performance. It also comes with a CNC-machined 7005 aluminum 15 mm thru-axle, providing maximum stiffness in the rear triangle.
Chain tension is kept perfectly consistent thanks to the integrated chain tensioner, guaranteeing smooth and efficient power transfer regardless of the gear ratio. Engineered for peak performance, the HSX Carbon is a true “race weapon.”
The SD Components Carbon V2 fork is also made from carbon fiber and features a 7075-T6 aluminum steerer tube, providing both lightness and strength. Its stiffness makes it a key component for handling tight turns and fast descents on race tracks.
Complying with the strictest standards (CPSC and EN 14781), this frame/fork kit is purpose-built for BMX racing and represents the pinnacle of performance and technology.

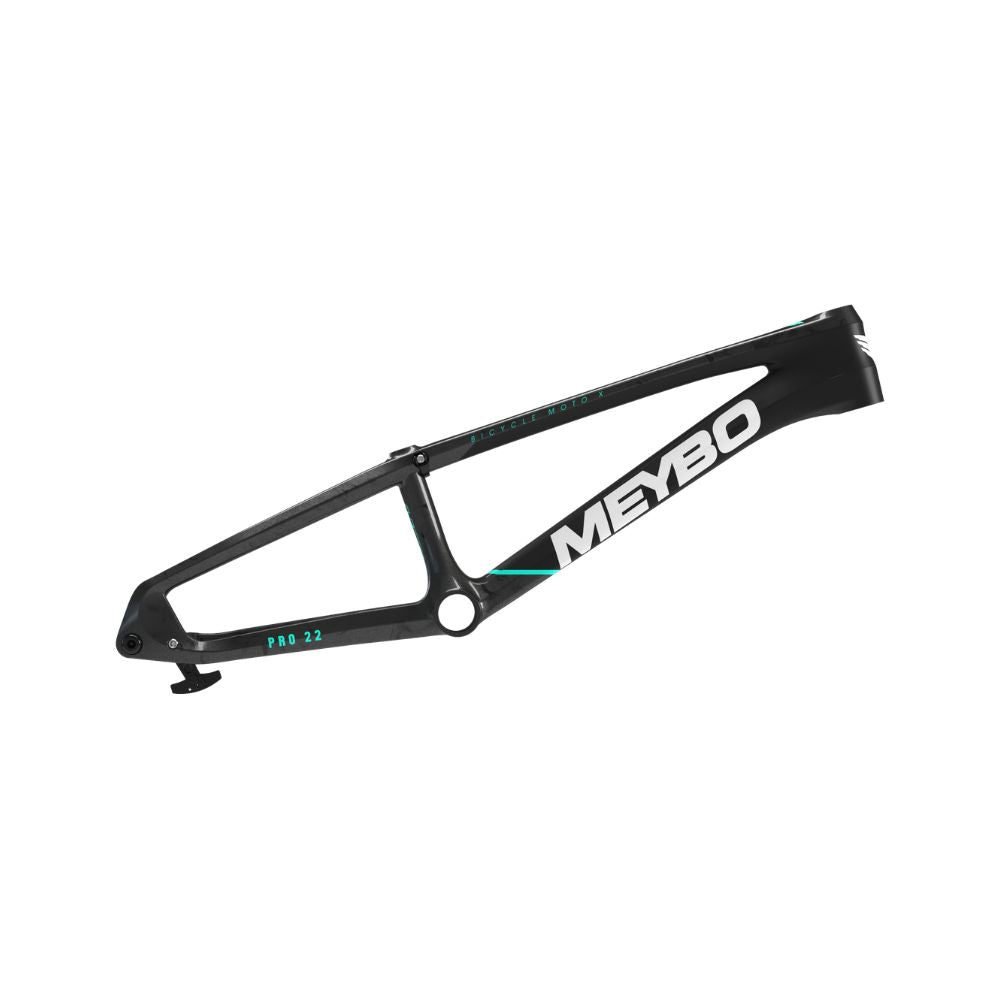

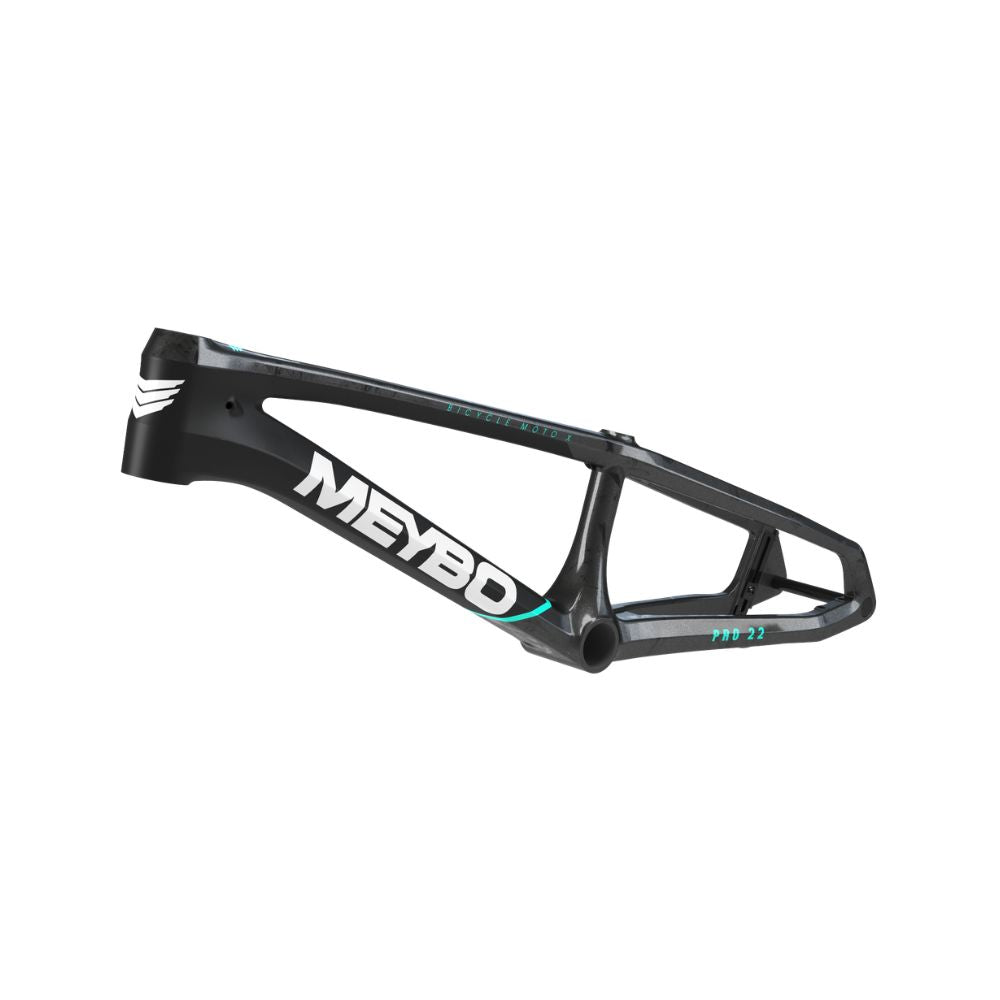

FRAME SPECIFICATIONS
- 100% Toray T800 carbon
- Flat-mount brake caliper and 120 mm disc only
- Compatible with 24 mm or 30 mm crank axle

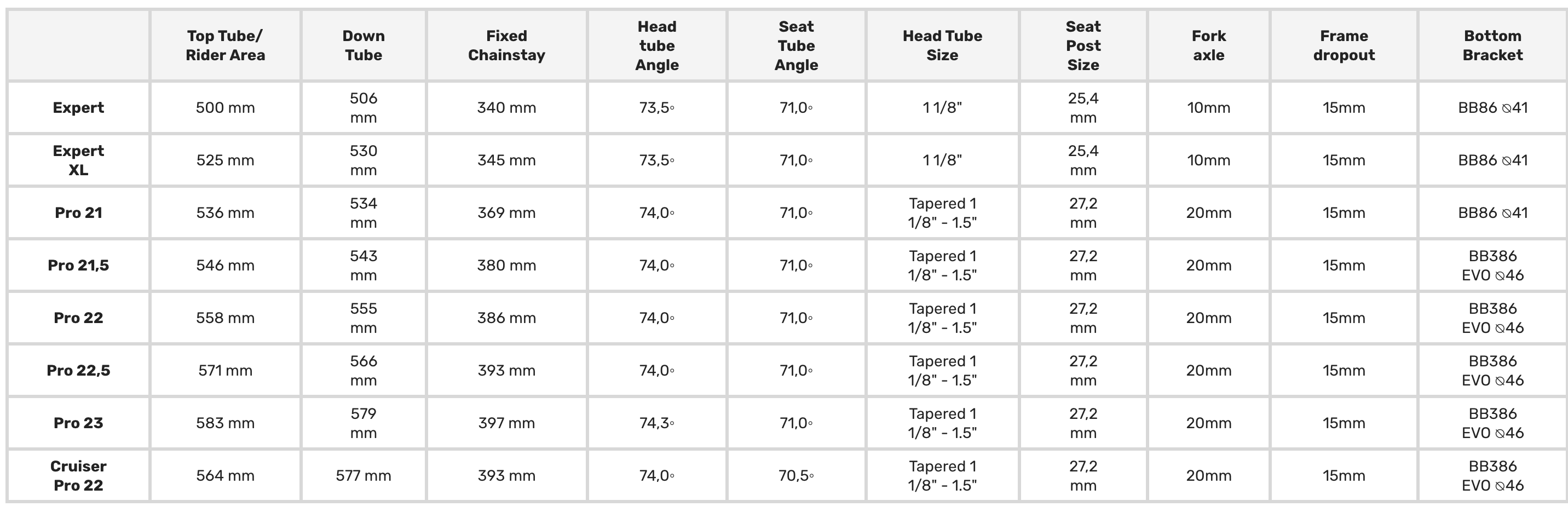

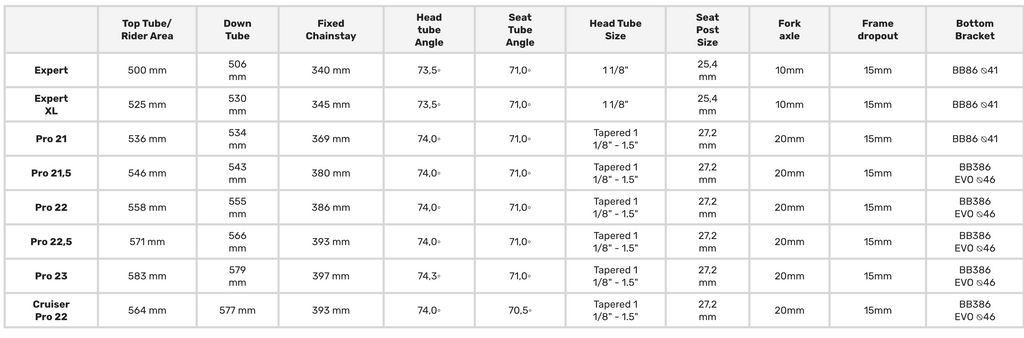

- Bottom bracket: BB86 or BB386 depending on frame size – see table below
- Seatpost diameter: 25.4 mm or 27.2 mm depending on size – see table below
- Integrated chain tensioner on the rear stay
- Integrated seat clamp
- Supplied with a 15 mm fixed thru-axle for the rear wheel – 7005 aluminum, fully CNC-machined
- Compatible with OS20 wheels
- Includes three spacers (1, 2, and 4 mm) for brake rotor alignment
FORK SPECIFICATIONS
- Material: Carbon blades / 7000-series aluminum steerer
- Steerer length: 180 mm (non-cuttable)
- Compression bolt: M22x20 mm
- Fork height: 310 mm
- Offset: 30 mm
RECOMMENDATIONS / WARRANTY
Meybo HSX carbon fiber frames must be installed exclusively by a professional bicycle mechanic. Failure to follow the installation instructions may damage the frame and void the warranty. NEVER ride a cracked or broken frame. Doing so may lead to loss of control, resulting in an accident, serious injury, or death.
Carbon fiber can hide structural damage caused by impacts or crashes. In the event of an impact or accident, stop riding immediately and have the frame inspected by a professional bicycle mechanic for potential damage. Meybo HSX frames are designed for seatposts with a maximum length of 150 mm. Using a longer seatpost may damage the frame and void the warranty!
