PRIDE ADAPTER KIT - 15MM TO 10MM AXLE

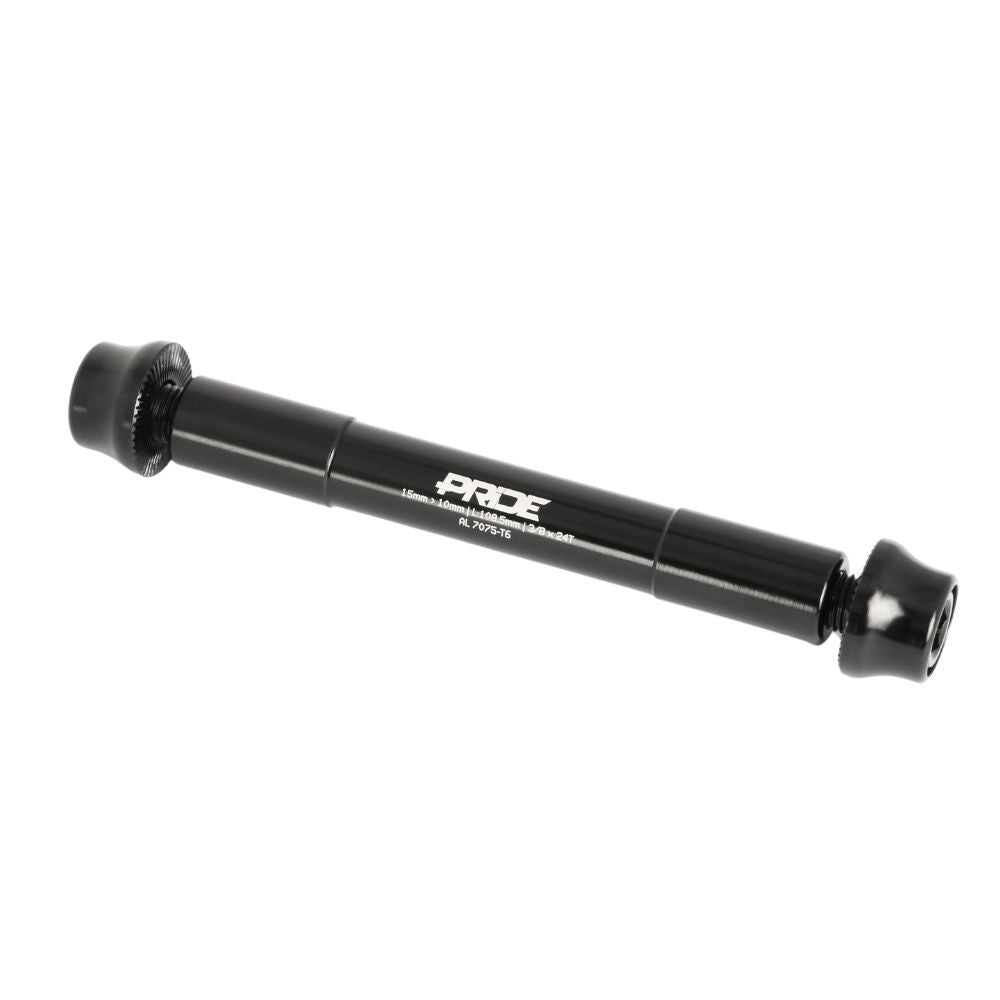

This axle kit is specially designed to allow installation of a 15mm hub on a frame with 10mm dropouts. It comes with the 15mm to 10mm adapter axle, two cones, and two bolts.
The axle and cones are made from 7075-T6 Aluminum to ensure excellent strength. They are also CNC machined for a perfect finish and precision. The bolts are made of stainless steel to resist corrosion. The axle length and bolt length have been designed to ensure perfect hub retention in the frame to optimize rear triangle stiffness while maintaining the necessary space for proper hub compression in the frame.
INSTALLATION - ASSEMBLY
To install this kit, simply remove the bolts and cones from the axle, insert the axle into your rear hub, then place the wheel in your frame before tightening the bolts and cones using an 8mm Allen key and you are done.
SPECIFICATIONS
- Compatibility : All 15mm hubs with 110mm spacing
- Material : 7075-T6 Aluminum (Axle/Cones) - Stainless steel (Bolts)
- Outer diameter : 15mm
- Axle length : 108.5mm
- Bolt length : 40mm (under head)
- Thread : 3/8"" x 24T
- Tightening tool : 8mm Allen
- Weight : 93g
WARRANTIES - RECOMMENDATIONS
PRIDE RACING recommends having the installation checked by a professional to avoid accidents and damage to people and equipment.
