S&M

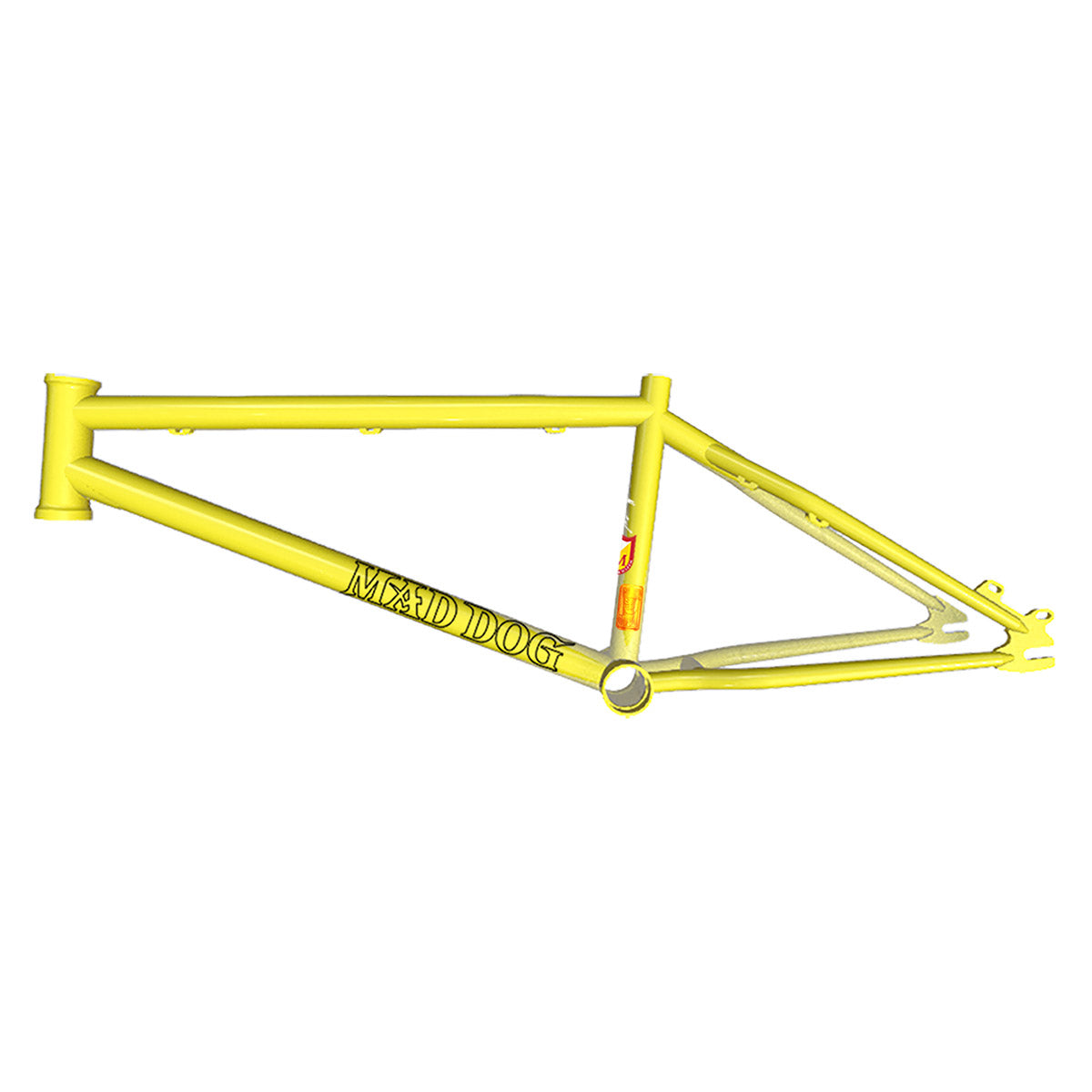

S&M MAD DOG FRAME

  • Offerta
  • Prezzo di listino €749,00
  • SPEDITO IN 3/4 GIORNI
Prezzi IVA COMPRESA


  • CALL FOR DIFFERNT SIZES/COLORS



Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it.

Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube

Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor (Profile hub or hub with similar narrow flange width recommended for spoke/caliper clearance)  , 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm and accepts 3/8″ axle.

TOP TUBE LENGTHS 20.5″, 20.75″, 21″, 21.25″, 21.5″, 21.75″, 22″
REAR END LENGTH 13.9″
HEAD TUBE ANGLE 74.25°
STANDOVER HEIGHT 10″
B.B. HEIGHT 11.6″
SEAT TUBE ANGLE 71°
HEAD TUBE 5″ Tall Integrated Campy Style
B.B. STYLE Mid
BRAKE MOUNTS Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor.
DROPOUTS 3/8″
SEAT POST SIZE 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp
WEIGHT 4.9 lbs
